東風康明斯100KW移動拖車電站
康明斯系列柴油發電機組是采用中美合資B/N/K系列發動機為引擎,其可靠性、經濟性一直以來贏得部隊、工程、工礦企業的信賴。康明斯公司創建于1919年2月,總部設在美國印第安納州哥倫布市,康明斯在全球190多個國家和地區,500多加分銷機構,服務網點遍布世界各地,為客戶提供了可以信賴的服務保障。作為中國發動機行業最大的外國投資商,康明斯在中國擁有東風康明斯發動機有限公司(生產B/C/L系列)和重慶康明斯發動機有限公司(生產M/N/K系列)等制造企業。 Cummins diesel generator set is a sino-us joint B/N/K series engine, whose reliability and economy have always won the trust of the army, engineering and mining enterprises. Cummins company was established in February 1919, is headquartered in Columbus, indiana (USA), cummins in more than 190 countries and regions, 500 more distributors, service outlets all over the world, providing customers with reliable service. As engine industry's biggest foreign investors in China, cummins in China with dongfeng cummins engine co., LTD (produce B/C/L series) and chongqing cummins engine co., LTD. (M/N/K series), and other manufacturing enterprises. |
機組型號 | 輸出功率KW | 輸出功率KVA | 電流A | 柴油機型號 | 缸數 | 缸徑*行程mm | 潤滑油容量L | 油耗g/kw.g | 機組外形尺寸L×W×H | 機組重量kg |
FM20GF | 20 | 25 | 36 | 4B3.9-G2 | 4 | 102*120 | 11 | 208 | 1560*710*1080 | 700 |
FM24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 11 | 208 | 1620*710*1100 | 710 |
FM30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 11 | 208 | 1700*710*1110 | 800 |
FM40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 11 | 210 | 1800*800*1200 | 920 |
FM50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 11 | 210 | 1800*800*1200 | 950 |
FM64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 11 | 210 | 1850*800*1200 | 1000 |
FM80GF | 80 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 16 | 210 | 2200*800*1200 | 1250 |
FM100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 20 | 207 | 2200*800*1200 | 1300 |
FM120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 24 | 207 | 2250*800*1200 | 1350 |
FM132GF | 132 | 165 | 237.5 | 6BTAA5.9-G12 | 6 | 102*120 | 24 | 207 | 2300*820*1330 | 1350 |
FM150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 24 | 207 | 2300*820*1300 | 1600 |
FM180GF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 24 | 207 | 2500*1050*1480 | 1700 |
FM200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 28 | 207 | 2500*1050*1500 | 2000 |
FM220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 28 | 203 | 2500*1050*1500 | 2000 |
FM320GF | 320 | 400 | 576 | 6ZTAA13-G3 | 6 | 114*145 | 28 | 202 | 3200*1360*1800 | 3000 |
FM400GF | 400 | 500 | 720 | 6ZTAA13-G4 | 6 | 114*145 | 28 | 202 | 3200*1360*1800 | 3000 |
FM400GF | 400 | 500 | 720 | QSZ13-G2 | 6 | 130*163 | 28 | 201 | 3300*1360*1800 | 3100 |
FM450GF | 450 | 562.5 | 810 | QSZ13-G3 | 6 | 130*163 | 28 | 201 | 3300*1360*1800 | 3100 |
1.以上技術參數轉速為1500RPM,頻率50HZ,額定電壓400/230V,功率因數0.8,接線方式為三相四線。 2.發電機可以根據客戶需求,選用上海斯坦福、上海馬拉松、無錫斯坦福等知名品牌。 3.60HZ發電機組可以根據客戶的特殊需要定制。 4.本參數表僅供參考,如有更改恕不另行通知。 | ||||||||||
標準配置 Standard equipment: 發動機 diesel engine 發電機 alternator 散熱器 water cooled radiator 工業消音器 、波紋管 industrial silencer and flexible exhaust hose 啟動免維護蓄電池及蓄電池 電池連接線 maintenance-free lead-acid starting batteries and battery connect wires 輸出斷路器 output circuit breaker 智能控制屏 digital control panel 鋼式底架 steel base frame | ||||||||||
可選配置 Optional equipment 低噪音靜音機箱 Low noise silent case 四輪移動拖車電站 Four-wheel mobile trailer power station 自啟動、自轉換 開關柜 Self - start, self - conversion switch cabinet 自動并機控制系統 automatic parallel operation control system 電熱式水套加熱器 electrothermal water jacket heater |
移動發電機組 Mobile generating set |

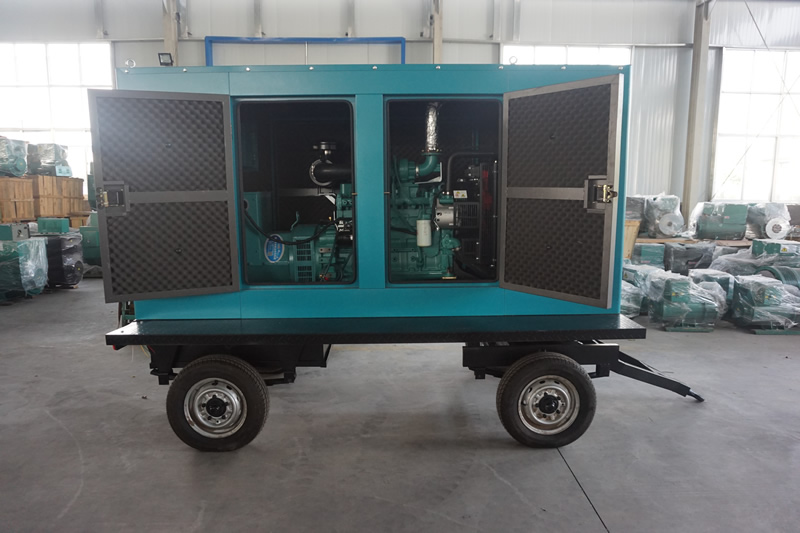

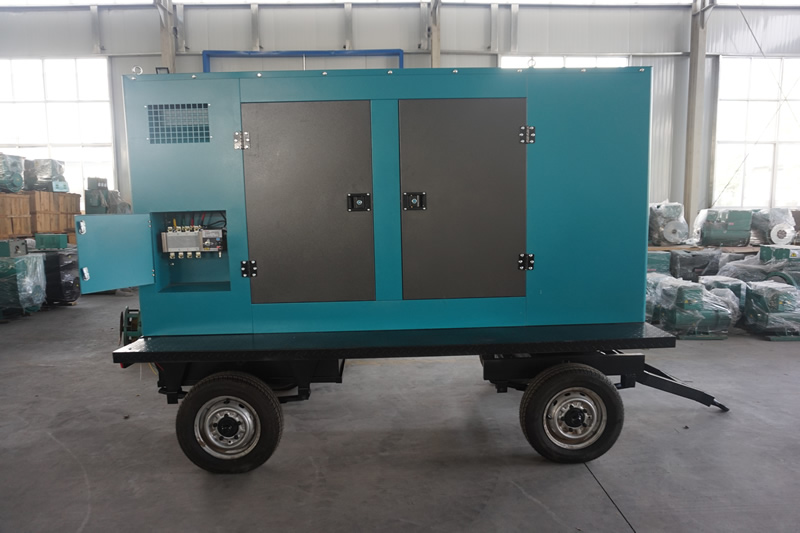

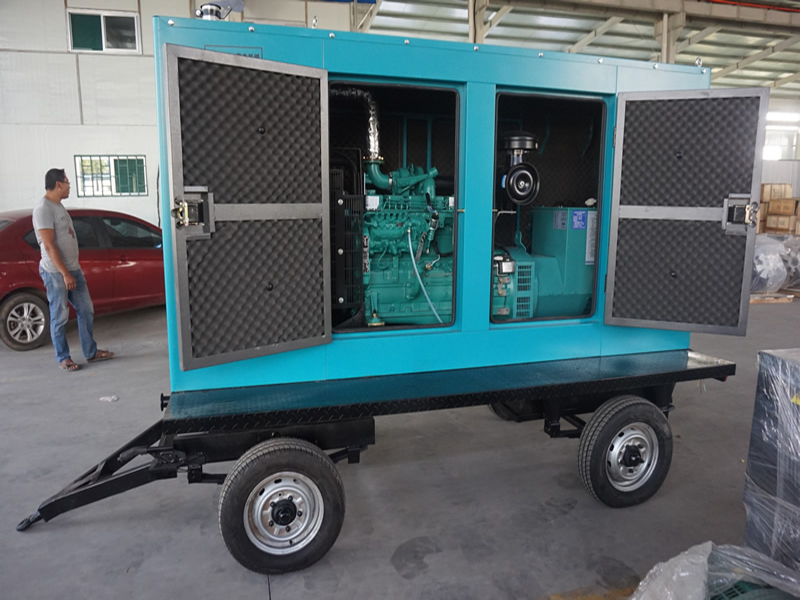

移動柴油發電機組有多種結構和功能,有手推式、三輪、四輪、汽車電站、拖車電站、移動低噪音。移動集裝箱電站等。該系統是我公司參照多國家移動電站結構,自行設計和生產的,具有良好的操作性能和安全性能。移動電站車架采用槽梁焊接成框架結構,節點選擇合理、強度高、剛性好,同時裝有鋼板彈簧懸架結構,拖車采用高度可調節插銷式牽引架,適用于各種高度牽引車,采用圓形鋼管焊接直通式車軸,結構緊湊,安全可靠。 The mobile diesel generator set has many structures and functions,including push type, three wheel, four wheel, automobile power station, trailer power station and mobile low noise. Mobile container power station, etc. This system is designed and produced by our company according to the structure of multi-national mobile power station, and has good operation performance and safety performance. Mobile power station frame with groove beam welded frame structure, node selection is reasonable, high strength, good rigidity, equipped with leaf spring suspension structure at the same time, the trailer adopts height adjustable bolt type drawing frame, suitable for all kinds of tractor, USES the circular steel tube welding cut-through axle, compact structure, safe and reliable. |
1、牽引:采用活動式掛鉤,360°轉盤、轉向靈活、確保行駛中的安全。 |
2、制動:同時具有可靠的手搖式剎車系統和氣剎接口,確保行駛中的安全性。 |
3、支撐:為保證電源車操作時的穩定性,可選配4只機械或液壓支撐裝置。 |
4、門窗:前部有通風窗,后部有對開大門,兩側有門可供操作人員操作。 |
5、照明:車廂內有吸頂防爆燈,右側有工作臺,并配有工作臺燈,方便工作人員操作。 |
6、防音:電源車的車箱、車內等全部用雙層裝飾,并裝有吸音板消音,排氣管用保溫棉包裹,噪音最低可控制在72db以?xún)?nèi)。 |
7、外部美觀:油漆采用高分子聚氨酯油漆,顏色可有業主自定,排氣管采用上排氣,確保美觀。 |
8、尺寸:車箱尺寸根據規格大小而定,操作人員可在四周行走,便于操作和維護。 |
9、消防:隨車可選配消防滅火器兩只。 |
