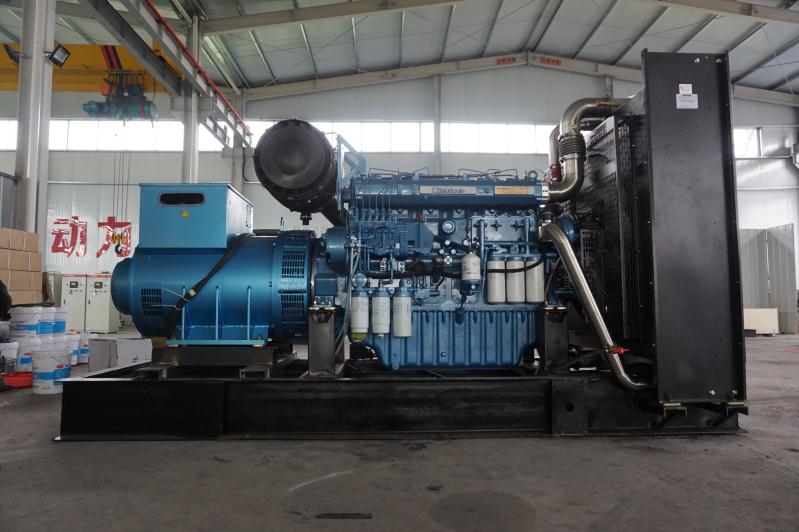

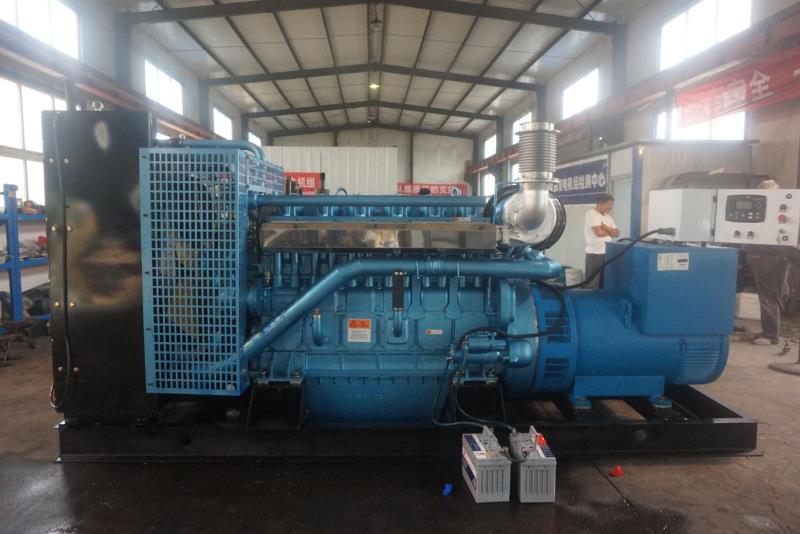

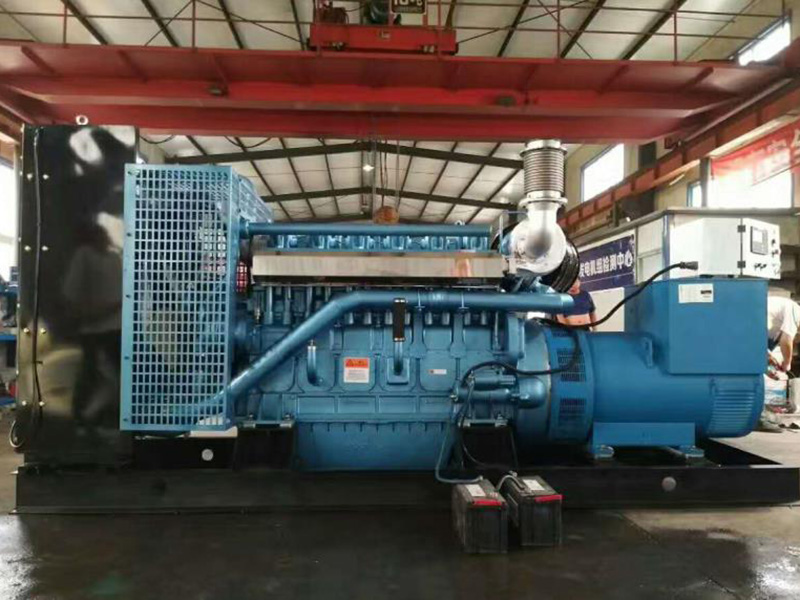

濰柴重機600KW柴油發電機組

濰柴動力股份柴油機高效可靠、高保有量濰柴近70年，超過300萬臺贏得了廣大客戶的尊重和認可。產品平均大修期為30000小時以上采用旋向錦旗輕量化空濾器，外形美觀中置下翻反旋增壓器，優化管路設計產品滿足非道路國二階段、國三階段發動機帶載能力強，滿足負載突變工礦要求噪音低、振動小采用加強型噴油泵，提高供油壓力發動機經歷高原、高溫、高寒洗禮-10°無輔助措施可成功啟動機組。配套功率 15KW-1200KW.

In the last 70 years, more than 3 million diesel engines have won the respect and recognition of customers. Product overhaul period for an average of 30000 hours the spin to the pennants lightweight air filter, under the beautiful shape of the screw supercharger, to optimize the design of the piping products meet the road the second stage, the three phase motor load ability, meet the requirements of the load mutation mining low noise, small vibration using enhanced fuel injection pump, increase the oil pressure, high temperature, engine experience plateau alpine baptism - 10 ° no auxiliary measures can be successfully started. Supporting power 15KW-1200KW.

機組型號	輸出功率KW	輸出功率KVA	電流 A	柴油機型號	缸數	缸徑*行程 mm	潤滑油容量 L	油耗 g/kw.g	機組外形尺寸 L×W×H	機組重量 kg
濰柴動力揚柴系列
FM15GF	15	18.75	27	WP2.1D18E2	4	85*92	12	195	16007001200	350
FM20GF	20	25	36	WP2.3D25E200	4	90*100	14	195	16007001250	450
FM30GF	30	37.5	54	WP2.3D33E200	4	90*100	14	195	17007001350	500
FM35GF	35	43.75	63	WP2.3D40E200	4	90*100	14	195	17007001350	600
FM45GF	45	56.25	81	WP2.3D48E200	4	90*100	14	195	18007501350	700
FM60GF	60	75	108	WP4.1D66E200	4	105*125	15	195	18007501450	800
FM90GF	90	112.5	162	WP4.1D100E200	4	105*125	16	195	22008501500	900
濰柴道依茨三缸機
FM30GF	30	37.5	54	D226B-3D	3	105*120	15	220	17008001200	500
FM45GF	45	56.25	81	TD226B-3D	3	105*120	15	220	18008001400	550
濰柴動力系列
FM50KW	50	62.5	90	WP4D66E200	4	105*130	18	198	19009001500	720
FM80KW	80	100	144	WP4D100E200	4	105*130	20	198	21009001500	800
FM100KW	100	125	180	WP4D108E200	4	105*130	20	198	21009001500	900
FM120KW	120	150	216	WP6D132E200	6	105*130	22	198	24009001500	1000
FM140KW	140	175	252	WP6D152E200	6	105*130	22	198	260010001500	1200
FM150KW	150	187.5	270	WP6D167E200	6	105*130	22	198	260010001500	1200
FM180KW	180	225	324	WP10D200E200	6	126*130	25	198	280012001600	1500
FM200KW	200	250	360	WP10D238E200	6	126*130	27	198	280012001600	1800
FM250KW	250	312.5	450	WP10D264E200	6	126*130	27	198	280012001600	2000
FM280KW	280	350	504	WP12D317E200	6	126*155	32	198	300012501600	2200
FM300KW	300	375	540	WP10D320E200	6	126*155	32	198	300012501600	2500
FM350KW	350	437.5	630	WP13D385E200	6	127*165	32	198	320013501700	2800
FM380KW	380	475	684	WP13D405E200	6	127*165	35	198	320013501700	3000
FM400KW	400	500	720	WP13D440E310	6	127*165	35	198	320013501750	3200
濰柴重機系列
FM450KW	450	562.5	810	WHM6160SD518-5	6	160*200	48	215	360015001800	3800
FM550KW	550	587.5	990	WHM6160MD628-5	6	160*216	48	215	360015001800	4000
濰柴博杜安系列
FM400KW	400	500	720	6M26D447E200	6	150*150	60	210	360015001800	3600
FM450KW	450	562.5	810	6M26D484E200	6	150*150	60	210	360015001800	4000
FM520KW	520	650	936	6M33D572E200	6	150*185	60	210	360015001800	4500
FM550KW	550	687.5	990	6M33D605E200	6	150*185	60	210	360015001850	5000
FM720KW	720	900	1296	12M26D792E200	12	150*150	120	210	450018502200	7000
FM820KW	820	1025	1476	12M26D902E200	12	150*150	120	210	450018502200	7500
FM900KW	900	1125	1620	12M26D968E200	12	150*150	120	210	460018502250	8000
FM1000KW	1000	1250	1800	12M33D1108E200	12	150*185	135	210	480020002400	8600
FM1100KW	1100	1375	1980	12M33D1210E200	12	150*185	135	210	480020002500	9000

1.以上技術參數轉速為1500RPM，頻率50HZ，額定電壓400/230V，功率因數0.8，接線方式為三相四線。 2.發電機可以根據客戶需求，選用上海斯坦福、上海馬拉松、無錫斯坦福等知名品牌。 3.60HZ發電機組可以根據客戶的特殊需要定制。 4.本參數表僅供參考，如有更改恕不另行通知。
標準配置 Standard equipment：發動機 diesel engine 發電機 alternator 散熱器 water cooled radiator 工業消音器、波紋管 industrial silencer and flexible exhaust hose 啟動免維護蓄電池及蓄電池電池連接線 maintenance-free lead-acid starting batteries and battery connect wires 輸出斷路器 output circuit breaker 智能控制屏 digital control panel 鋼式底架 steel base frame
可選配置 Optional equipment 低噪音靜音機箱 Low noise silent case 四輪移動拖車電站 Four-wheel mobile trailer power station 自啟動、自轉換開關柜 Self - start, self - conversion switch cabinet 自動并機控制系統 automatic parallel operation control system 電熱式水套加熱器 electrothermal water jacket heater
