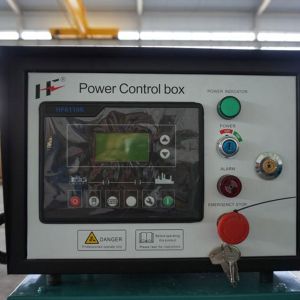

啟動/停車控制器
Start/stop controller

三相交流電流電壓顯示
Three phase ac current voltage display

頻率表/水溫表/時間表/電池電壓顯示
Frequency meter/water temperature meter/schedule/battery voltage display

報警功能：超速、高水溫、低油壓、充電失敗
Alarm function: overspeed, high water temperature, low oil pressure, failed charging

保護功能：低油壓、高水溫、超速緊急停機及其他預置保護
Protection function: low oil pressure, high water temperature, overspeed emergency stop and other preset protection

無市電（失壓）自啟動控制屏
No power supply (voltage loss) self - starting control screen

控制屏除了具有標準的手動控制屏功能與配置外，且附加遠程控制接口
The control screen not only has the standard manual control screen function and configuration, but also has the remote control interface

自動/停車/手動功能選擇
Auto/stop/manual function selection

啟動延時（3-5秒可調）
Start delay (3-5 seconds adjustable)

停機延時（0-270秒可調）
Stop delay (0-270 seconds adjustable)

3次自動啟動功能
Three automatic starts

報警功能增加：低速/超速、輸出電壓故障、啟動失敗、高水溫、高油溫預報警、停電停機
Alarm function added: low speed/overspeed, output voltage fault, start-up failure, high water temperature, high oil temperature alarm, power outage stop

保護功能增加：低速/超速、啟動失敗、輸出電壓故障（過壓、欠壓、過流）
Protection function added: low speed/overspeed, start-up failure, output voltage fault (overvoltage, undervoltage, overcurrent)

全自動轉換柜

Automatic transfer cabinet

對于特殊環境要求的場合下，雙電源自動轉換裝置（ATS）是必要的，ATS可以在無人操作的情況下實現主電源（即市電）和應急電源（即發電機組）之間的切換。當主電源斷電或電壓低于正常電壓時，ATS自動將在0-10秒（可調節）內啟動應急發電機組，然后將負載用電從主電源切換到應急電源（發電機組）上，發電機組給負載供電。反之，當主電源恢復正常時，ATS自動將負載用電從應急電源上切換到主電源，然后自動停機
For special environmental requirements of the occasion, dual power automatic switching device (ATS) is necessary, ATS can be realized under the condition of the unmanned main power source (mains) and emergency power supply (genset) between the switch. When the main power outage or voltage is lower than the normal voltage, ATS automatically within 0 to 10 seconds (adjustable) start the emergency generator, then load power from the main power switch to the emergency power supply (genset), generator to the load power supply. Conversely, when the main power supply returns to normal, ATS will automatically switch the load power from the emergency power to the main power supply, and then stop automatically

3個功能操作轉換位置：關閉，自動，手動。
3 functions: close, automatic and manual.

市電供電顯示
City power supply display

發電機組供電顯示
Generator unit power supply display

市電或發電機組電壓顯示
Voltage display for municipal power or generating set

并車控制屏 Parallel control panel

并車控制屏可以控制兩臺或多臺柴油發電機組并車運行。該系統具有以下顯著優點
And the car control panel can control two or more diesel generators running together. The system has the following significant advantages

購買成本低：購買幾臺小功率機組與購買單臺大功率機組，成本僅需大功率機組的50-70%
Low purchase cost: only 50-70% of the cost of buying a few low-power units and a single high-power unit is required

使用成本低：根據負載大小，自動投入適當臺數，避免了大功率機組小負荷運行

Low cost: according to the load size, automatic input is appropriate to avoid small load operation of high-power units

維修成本低：大功率機組的配件易損壞和大修理費用昂貴，而小功率機組配件充足并且維修費用較低
Low maintenance cost: parts of high-power units are easy to damage and expensive to repair, while parts of low-power units are sufficient and maintenance costs are low

用壽命長：采用輪休制，在同樣的發電時間內，減少了每天機組的使用頻率
Long service life: the use of the rotation system, in the same generation time, reduce the daily unit frequency

具有可靠性：在并網系統中，即使在一臺機組發生故障的時候，仍有部分機組繼續使用，避免了單臺機組出現故障全部停機的狀況
Reliability: in the grid-connected system, even in the event of a failure of a unit, some units continue to operate, avoiding the failure of a single unit
